Perovskite photo voltaic cells are attracting curiosity as lower-cost, high-efficiency options to silicon photovoltaics, however defects of their skinny movies hinder cost transport, waste vitality, and cut back gadget stability.
One strategy to mitigate these defects is passivation remedy, wherein easy salts or natural molecules are launched into the perovskite movie in order that small molecules or ions bind to defect websites and restrict their influence on electrical conduction. Nevertheless, most current characterization methods solely probe the movie floor or present averaged macroscopic measurements, making it troublesome to verify how effectively completely different passivation methods work contained in the movie quantity.
Researchers on the Ningbo Institute of Supplies Know-how and Engineering (NIMTE) of the Chinese language Academy of Sciences have now developed a three-dimensional electrical imaging technique that instantly visualizes how defect passivation operates inside perovskite layers. The research, printed on December 31 within the journal Newton, studies that this technique can map cost transport all through the movie and hyperlink these microscopic options to photo voltaic cell efficiency.

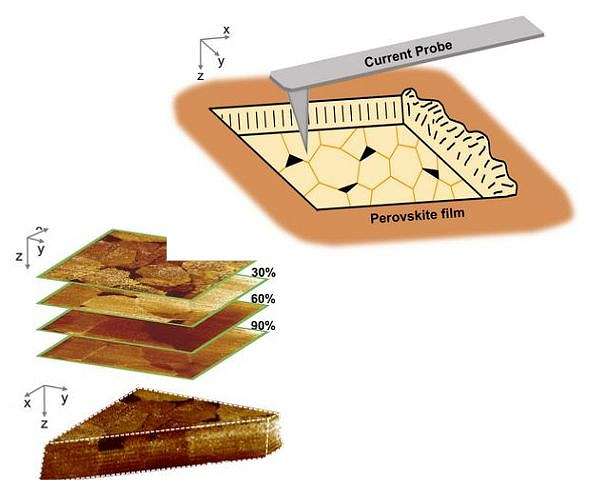

The approach depends on tomographic conductive atomic drive microscopy, or TC-AFM, which measures native electrical conductivity whereas the instrument sequentially removes ultrathin layers from the perovskite movie. By stacking the conductivity knowledge acquired at every depth, the group reconstructs a three-dimensional map of present distribution and cost transport pathways with nanoscale spatial decision.
Utilizing TC-AFM, the researchers in contrast perovskite movies processed with completely different passivation methods and instantly noticed adjustments of their inner electrical habits. Movies with out passivation confirmed widespread low-conductivity areas that impede cost movement, whereas bulk passivation lowered these resistive domains inside the movie, particularly alongside grain boundaries.
Floor passivation produced a unique profile, primarily bettering conductivity close to the highest interface of the movie, which is necessary for integration into full gadget architectures. When each bulk and floor passivation have been utilized collectively, the movies displayed essentially the most uniform and steady conductive networks, with the remaining low-conductivity zones largely restricted to the floor.
“These microscopic electrical traits are intently correlated with the ensuing photo voltaic cell efficiency, establishing a direct hyperlink between 3D cost transport inside the movie and total gadget effectivity,” famous Prof. XIAO Chuanxiao, a corresponding writer of the research.
By delivering a direct three-dimensional view of charge-carrier migration in perovskite layers, the brand new technique offers a device for assessing and refining passivation methods. The authors report that this strategy can information the rational design of higher-quality perovskite supplies and help the event of extra environment friendly and secure perovskite photo voltaic cells, in addition to different thin-film digital and optoelectronic units.
